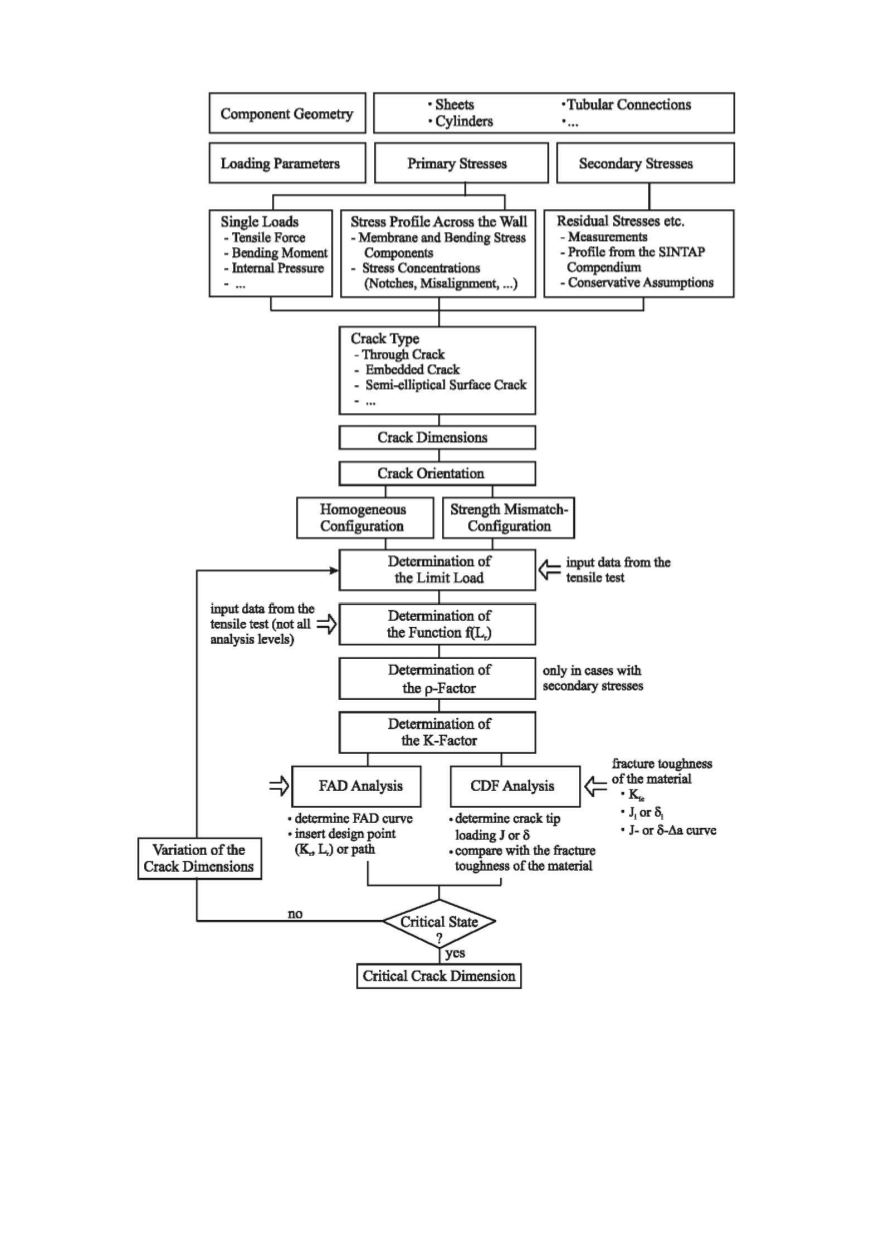

Figure 3. Flow chart for the determination of critical crack size using European SINTAP
1.1. Geometry and dimensions of the component
Component geometry and dimensions may vary, but from the analytical-handbook
they are necessary for analysis. As an example, the geometry of the fractured fork is a
thick plate (Fig. 4). The dimensions of the fractured cross section are shown in Fig. 5.
