If New is chosen, a new project is loaded. One only has to fill up the following fields
(Fig. 3); only Name is obligatory, others are optional and provide additional information
-
Date,
-
Project status,
-
Location,
-
Description.

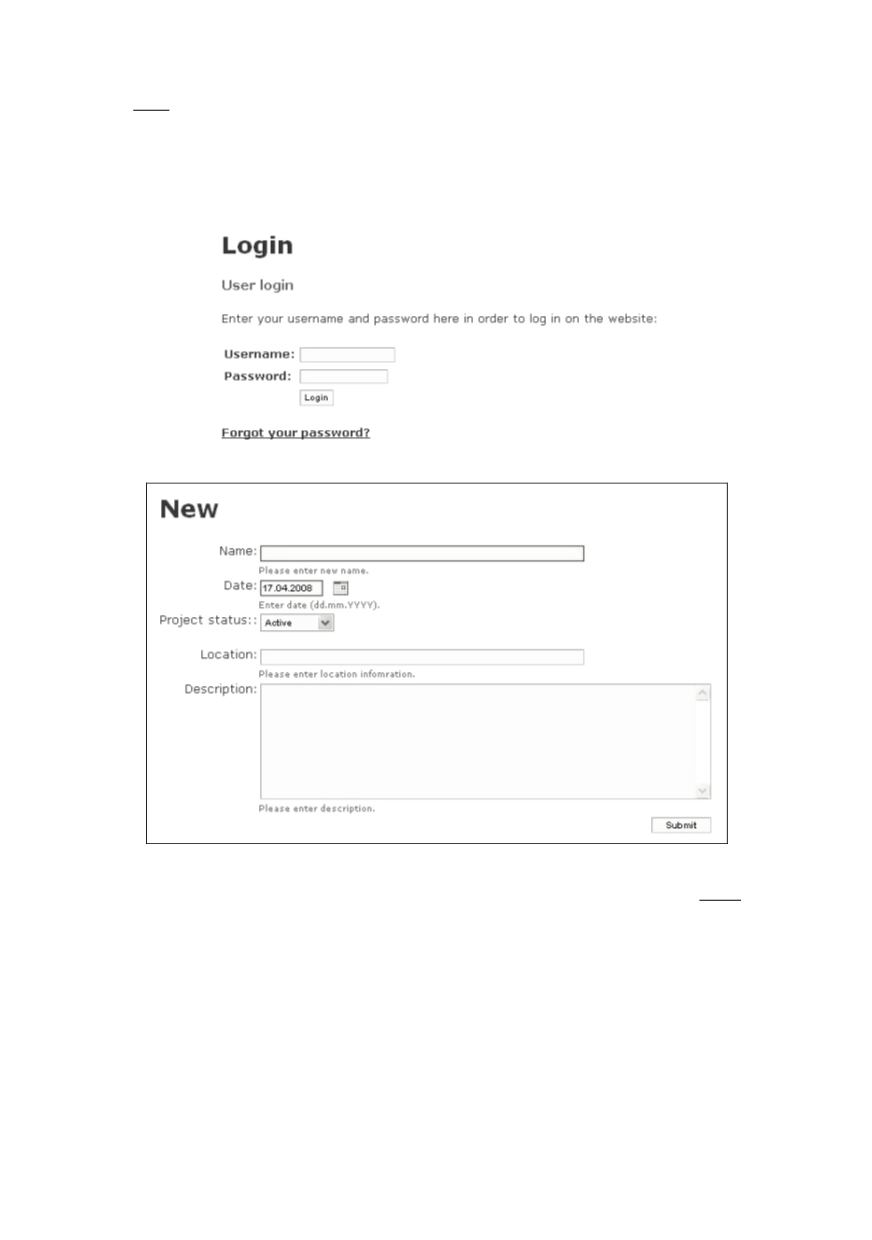

Figure 2: Login form
Figure 3: New project form
If there are already existing projects, they can be manipulated by clicking Open. One
chooses the desired project from the list on the left side, Fig. 4, by clicking the text with
the mouse.
2.3. Configuration
2.3.1. Configuration
Selection of the geometrical and loading configuration is the basis for the calculation.
The geometrical and loading configuration is selected, when is marked with the mouse
(Fig. 5). Its picture appears below together with description of the configuration, load
units, crack units, availability of the stress distribution, description of the component
geometry, crack geometry, loading, in addition availability of the strength mismatch and
sensitivity analysis. The desired configuration is selected by clicking »Submit«. The
